Seamless & Welded long radius piggable bends in 2D, 5D, 8D up to 22D, in Deg. of 45°, 90°, 180°, 360° size up to 32”NB with tangents length as per requirement. For L.R. Bends dimension tolerance, Flattening on any point max. 1.7%, ovality within 1% of the diameter of pipe, Deg. +/- 1.5, thinning max.5% of W.T., No flaring, wrinkle free bends, dummy pig pass test done with 96% ID of bend and ‘J’, ‘S’, ‘U’ special bends.

L.R. BENDS, BUTTWELD SEAMLESS & WELDED PIPE FITTINGS FORGED SW FITTINGS & FLANGES
PRODUCTS		MATERIAL
LONG RADIUS BENDS	FLANGE	STAINLESS STEEL	MONEL, ALLOY20,

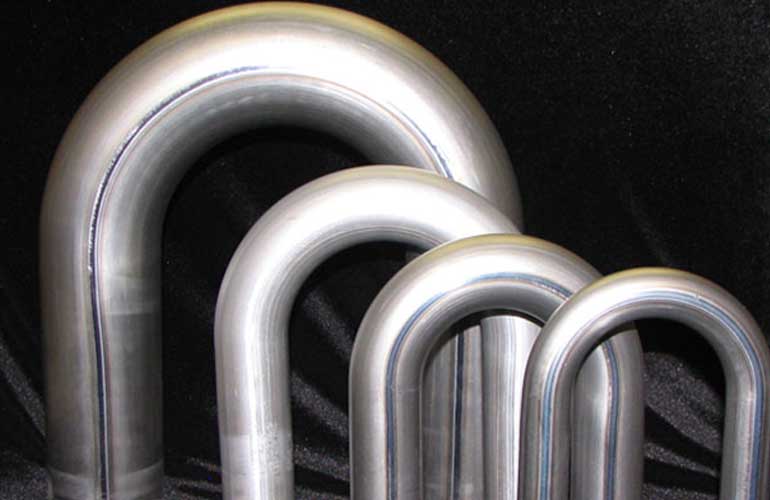

180 DEGREE U BEND	RING TONGUE JOINT FLG	ALLOY STEEL	ALUMINIUM 1060 Temp ’O’
ELBOW L.R. / S.R.	FIGER 8 SPECTACLE BLIND FLG	CARBON STEEL	INCONEL – 600
TEES-EQUAL / UNEQUAL	FORGED S/W FITTINGS	LOW TEMPRETURE (LTCS)
CAPS, CROSS	SOCKOLET / WELDOLET	WPHY 65
REDUCERS ECC / CONC.	THREADOLET / NIPPOLET	NACE
STUBENDS, COLLARS	UNION, COUPLING, PLUG	HIGH NICKEL ALLOYS
JACKETED / CLADDED FLG	SWAGE NIPPLES, NIPPLES	904L, UNS,
OVARLAY FITTINGS

MATERIALS OF CONSTRUCTION, SPECIFICATION & CODE

Materials	Specification	Size (mm)	Schedule	Method	Dimension
Stainless Steel.	A403WP304L,316L,317L,321, 347H,310, 904L, UNS, 410S	15 to 250 NB 40 to 800 NB	5s to XXS 5s TO 80s	Seamless Welded	B16.9 B16.28
Alloy Steel Carbon Steel Low Temp. Carbon Steel WPHY	A234 WP5/WP11/WP22, P9, P91, A234 WPB/ WX, WPHY 42, 46, 52, 60, 65 A420 WPL6	15 to 500 NB 200 to 800 NB	40 to XXS 10, 20, 30, 40, 80	Seamless Welded	B16.9 B16.28
Inconel, Monel, 904L, Titanium, Aluminium, UNS Dsgn	ASME, ASTM, API, ISO, BS, DIN, IS,	15 to 250 NB 40 to 800 NB 1/2" to 8” OD	5s to XXS 5s TO 80s	Seamless Welded	B16.9 B16.28
SS/ AS/ CS/ LTCS/ CU/ NI/ AL	ASTM A182F…/ A105/BS DIN, NACE,	15NB to 100 NB FLG. upto 1000MM	CL. 3000, 6000, 9000 CL. 150,300,600,900 CL. 1500	S.W. / SCRD WN, WNRTJ SORF, BLRF	B16.5, B16.11

Pipe Bend

Delivering Results with Solid Dependability
